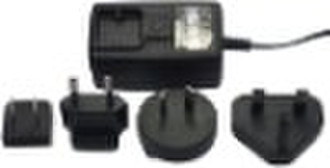

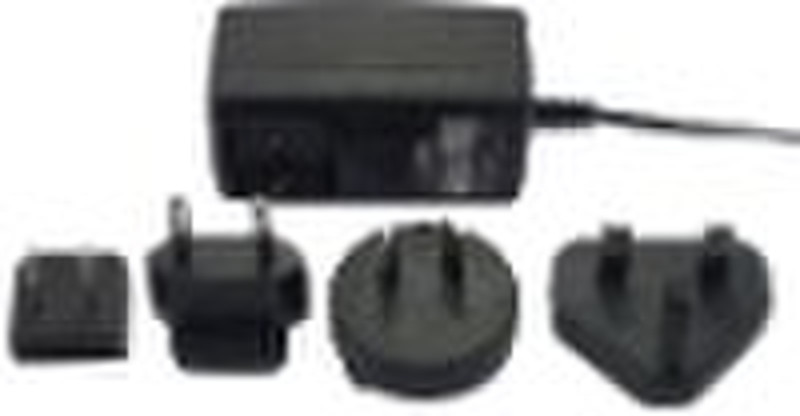

3W/5W/6W/8W/9W/12W Switching Power Adapter Charge

Standby Power:0.3Watt(m) CEC Requirement Standards for Power Supplies Effective January 1, 2008 (Efficiency Level: IV) Environment Operating Temp. 0- 40 Storage Temp. -20- 80 Humidity 10% - 90% (Non-condensing) RoHS & WEEE Standard Packing inf.(Reference Only) Weight/unit:80-90(g) Case Dim.:70*38*28(mm) Package:100 pcs/box Line regulation The line regulation is less than 1%. Efficiency The minimum efficiency shall be60% typically. Hold up time The hold up time shall be longer than 10ms. Temperature coefficient ±0.05%/ °K typical on all output. Turn on / off delay During turn on and turn off, no voltage shall exceed its nominal voltage by more than 10% and no output will change its polarity with respect to its return line. All output shall reach their steady state values within 2S of turn on. Transient Response and Deviation The power supply will meet all specifications and maintain output voltage regulation within 5% of nominal with up to a current change of 50% of maximum current in load for the output #1. Indicator The power supply is designed NO LED indicator to indicate the power output in its normal condition. PROTECTION REQUIREMENT Short circuit protection No damage to the power supply shall be sustained when operating any output under any line condition, into a short circuit condition for an indefinite period of time. The power supply shall be self – recovering when fault condition removed. Overshoot At turn on, the output voltage shall not exceed steady stage by more than 10%. Overload Protection (or over current) The maximum output power shall be limited to<300% RELIABILITY Calculated MTBF shall exceed 35,000 hours at maximum load and 25°C ambient in accordance with MIL-STD-HDBK-217. ENVIRONMENTAL CONDITIONS Operating The power supply shall be capable of operating continuously in any mode without performance deterioration in the following environmental conditions. i. Ambient Temperature: 0°C 40°C ii. Relative Humidity: 20% 90% iii. Altitude : Sea level to -100 10,000 feet. iv. Vibration: 1.0mm, 10 –25Hz, 15 minutes per cycle for each axis (X, Y, Z) Non - operating The power supply shall be capable of with standing the following environmental conditions extended periods of time, without sustaining electrical or mechanical damage and subsequent DIELECTRIC WITHSTAND SPECIFICATION Hi-pot test Shall withstand without breakdown 3000VAC 10mA 3 Sec. between AC plug to DC plug and case. INTERNATIONAL STANDARTS The power supply has been designed meet the following safety standard EMI standards The power supply meets the radiated and conducted emission requirements for FCC part 15 CLASS B, EN55022 CLASS B. EMS standards The power supply meet below standard ESD:Contact > 4KV,Air>8KV meet IEC 61000-4-2 RS:Frequency 80MHZ 1.0GHz,Field Strenght 3V/M,meet IEC61000-4-3 EFT:1.0KV on input ac power ports.meet IEC61000-4-4 SURGE: Line to line:+/-1KV(peek),meet IEC61000-4-5 Line to earth(ground):+/-2KV(peek),meet IEC61000-4-5
