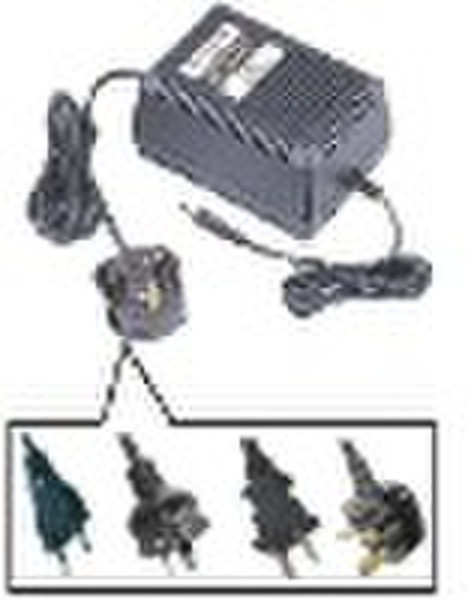

Power Adapter 3W/5W/6W/8W/9W/12W/15W/18W/20W/24W/3

AC/AC EI-66 Desktop Series Linear Power Adapter I/P: AC100V, 110V, 220V, 230V, 240V 50/60Hz O/P:AC1.2-27.0V (42.0VA max.)Class II AC/AC EI-66 Desktop Series Linear Power Adapter Construction: 1)Surface: Damage, Ruction, Foam (Flow or Air) not Permitted. 2)Lead pull test: 2kg for 10 seconds. 3)Impregnation: Varnish Characteristics: 1)Primary rated voltage and frequency: 100-120 or 220-240 V 50/60 Hz. 2)Exciting Current: Input Primary: 100-120 or 220-240 V 50/60 Hz 180 mA Max. 3)Hi-Pot test: Input 50Hz 1000 or 3750 V for one minute between Primary and Secondary and between Primary to Core. 500 V for one minute between Secondary to core. 4)Insulation test: 500 V dc 100M ohm Min. windings and core. ( Leakage Current 1mA) 5)Humidity test :Temp 32±2°C relative humidity 90 % RH for 6 hours , after Keeping 30 minute following insulation must be larger than 5 MW. 6)Temperature test: Less than 75 °C for rated test with Resistance method.
