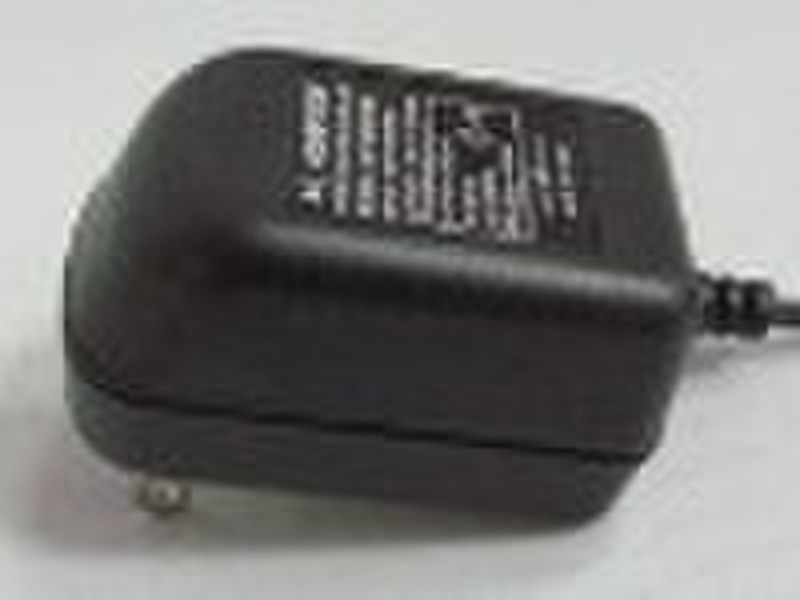

Power Adapter 3W/5W/6W

AC/DC EI-28 Series(North America/Japan/Taiwan..) Linear Power Adapter (Adapter) Safety Approved: PSE, UL, C-UL... I/P: AC100 50/60Hz, AC110/60Hz, AC120/60Hz O/P:DC1.5V 28.0V 1.5VA(Max) AC/DC EI-28 Series(North America/Japan/Taiwan..) Linear Power Adapter (Adapter) Construction: 1)Surface: Damage, Ruction, Foam (Flow or Air) not Permitted. 2)Lead pull test: 2kg for 10 seconds. 3)Impregnation: Varnish Characteristics: 1)Primary rated voltage and frequency: 120 V 60 Hz. 2)Exciting Current: Input Primary: 120 V 60 Hz40 mA Max. 3)Hi-Pot test: Input 50Hz 1000 V for one minute between Primary and Secondary and between Primary to Core. 500 V for one minute between Secondary to core. 4)Insulation test: 500 V dc 100M ohm Min. windings and core. ( Leakage Current 1mA) 5)umidity test :Temp 32±2°C relative humidity 90 % RH for 6 hours , after Keeping 30 minute following insulation must be larger than 5 MW. 6)Temperature test: Less than 75 °C for rated test with Resistance method.
