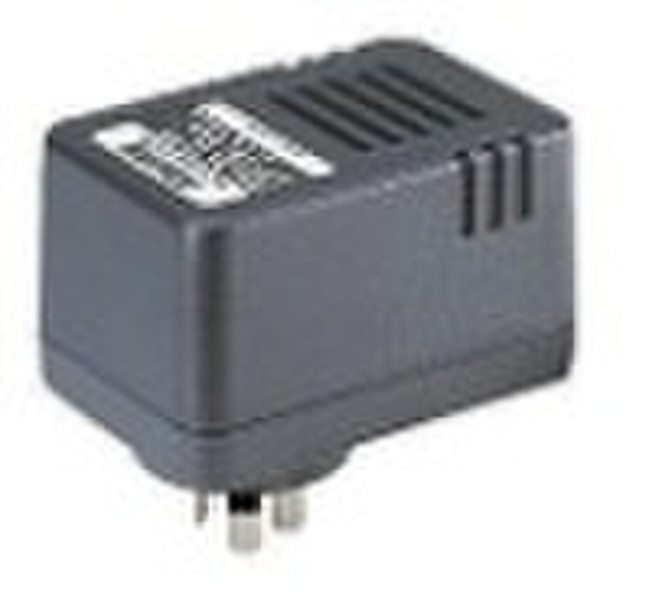

SAA Power Adapter 9W/12W/15W/18W/20W/24W/30W

AC/AC EI-48 Series(Australia) Linear Power Adapter (Adapter) Safety Approved: SAA, C-Tick. Compliance RoHS I/P: AC220-240V 50/60Hz O/P:AC1.2-24.0V (20.0VA max.)Class II AC/AC EI-48 Series(Australia) Linear Power Adaptor (Adapter) Construction: 1)Surface: Damage, Ruction, Foam (Flow or Air) not Permitted. 2)Lead pull test: 2kg for 10 seconds. 3)Impregnation: Varnish Characteristics: 1)Primary rated voltage and frequency: 220-240 V 50 Hz. 2)Exciting Current: Input Primary: 220-240 V 60 Hz 95 mA Max. 3)Hi-Pot test: Input 50Hz 3750 V for one minute between Primary and Secondary and between Primary to Core. 500 V for one minute between Secondary to core. 4)Insulation test: 500 V dc 100M ohm Min. windings and core. ( Leakage Current 1mA) 5)Humidity test :Temp 32±2°C relative humidity 90 % RH for 6 hours , after Keeping 30 minute following insulation must be larger than 5 MW. 6)Temperature test: Less than 75 °C for rated test with Resistance method.
